Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...
Floating Seal is a Seal Used in Rotating Body Exposed to Silt and Sand.The Floating Seal Is a Kind of A Combination Seal Composed of High Hardness C ...

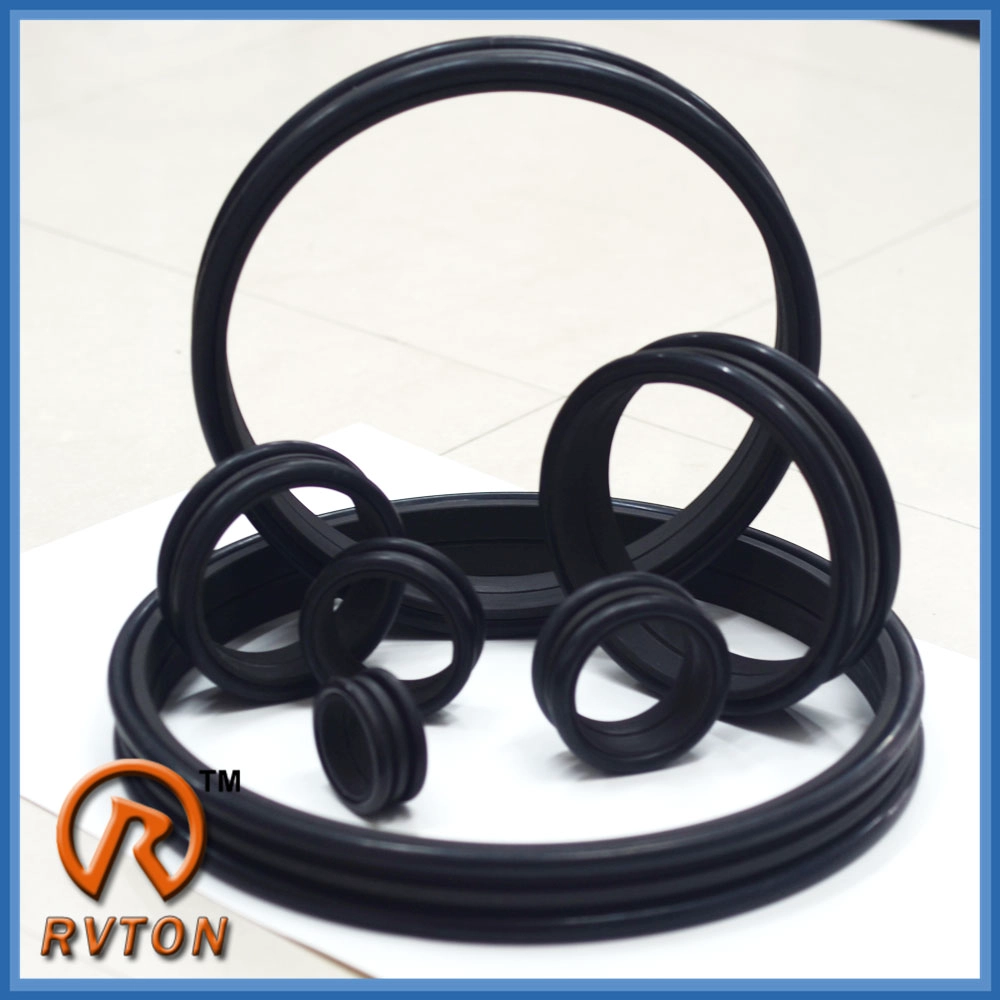

Rvton seal group Set are consist of metal rings and rubber o ring

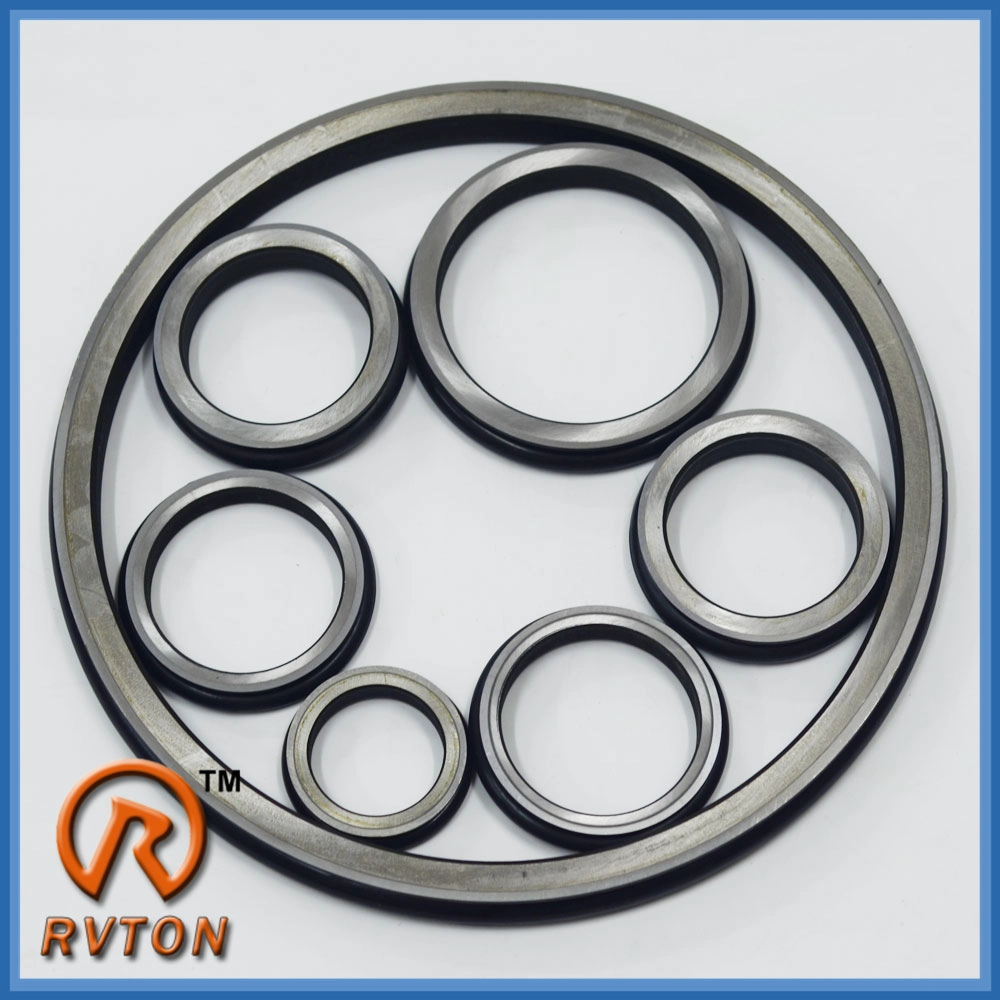

- The metal rings
| Surface finish / Roughness | ≤ Ra0.2μm |
| Face finish | ≤ Ra0.015μm |
| Pressure | ≤ 0.3MPa |
| Forged/Casting line speed | 2m / s & 3m / s |
| Hardness | 58 - 62 HRC |
| Temperature |
-100 ~ 200 °C |

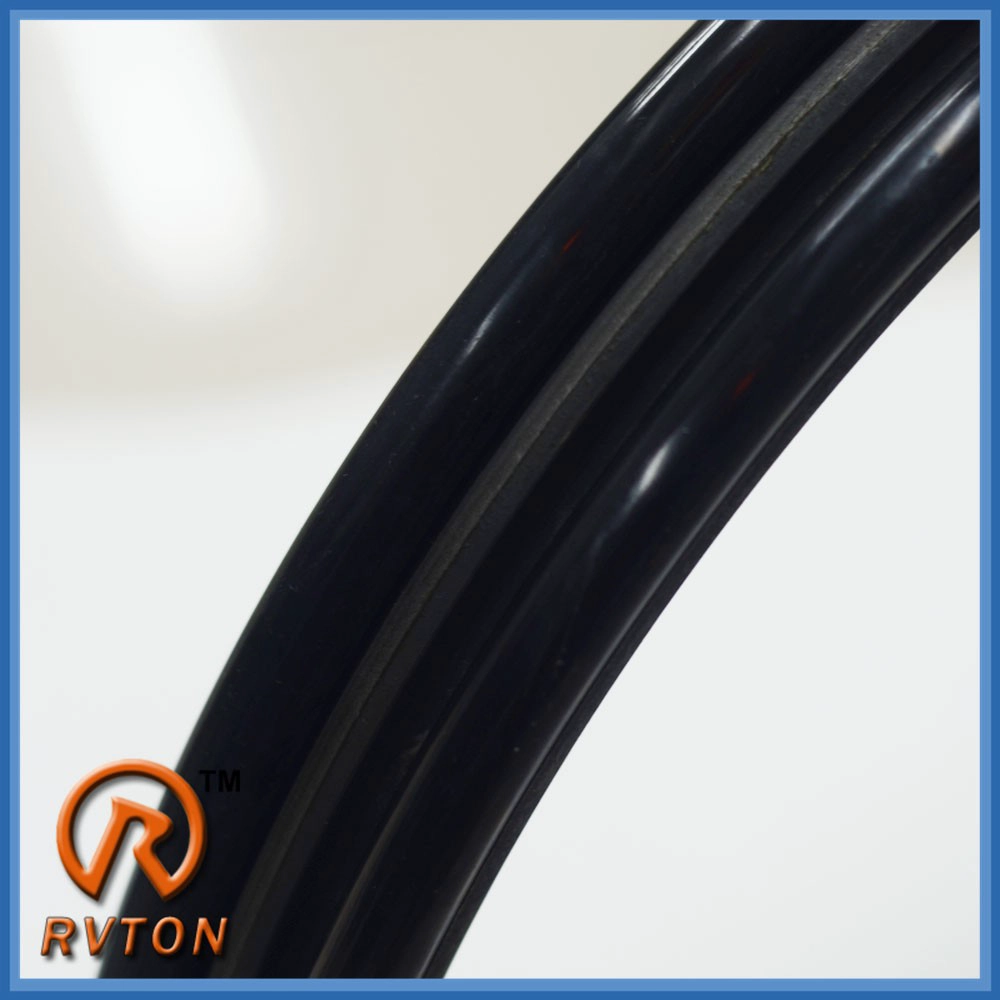

- The rubber o ring
| Shore hardness | 60 ° ~ 65 ° |
| Minimum tensile strength | 11MPa |
| Minimum elongation at break | 300% |
| Flexible change | ± 5 ° |
| permanent deformation | ≤ 12% |
| Model |
OEM Codes |
| Komatsu |
195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121, 140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010... |
|
Kobelco |
R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25, R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28... |
|
Caterpillar |
1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201... |
|
Hitachi |
4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110, 4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64... |
Packing : neutral packing, yellow box, white box, and welcome your logo in packing
Shipping: FOB Shanghai, Ningbo, Shenzhen, xiamen as per request.
Rvton welcomed many customers during Bauma 2014, it's a valuable experience for us.
Huangshi Rvitong Machinery Comapany Limited
1. A factory founded in 2004.
2. two production line:
a. one is for forgeable piece 100Cr6, hardness is HRC58-62, worktime is 5000HRS;
b. Two is for cast iron 15Cr1Mo/15Cr3Mo, hardness is HRC62-68, worktime is 8000HRS.
3. Inner diameter 35 - 1,000mm.
4. Four different types: standard type, XY type, L type and iron plate type.
1. Are you a real manufacturer for floating seals ?
Rvton is a real manufacturer for floating seals only. We also design
floating seals, draw floating seals, assemble and manufacture seals. We
accept customer's design, drawing, and samples.
2. As an inland company, how to arrange shipment ?
This could be our advantage, as we are located in middle of China, it takes us same times to send goods either to Wuhan, Shanghai, Ningbo, Shenzhen, or Xiamen port. We can deliver to most of ports for sea shipments, and arrange express DHL UPS Fedex TNT EMS Freely to Door service.
3. Usually how long it take to finish an order ?
3 - 4 weeks for a common order around 1000 sets, and we keep regular stocks for sample order or trial orders, which can supply immediate delivery.
4. Tell us more about your manufacturing process ?
The main manufactuer process is listed in following chart, feel free to ask more.
More questions ?? Any request now ?
Welcome to contact following Macy for a quick answer, quick online service
 |
Macy Cao Email - floatingseal03@ rvton.com Skype: rvton.seals Whatsapp: 0086-13886465358 TM: cn1500379557 Tel: 0086 15717237241 Website: www.rvton.com |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Duo cone Seals for D7h Rollers Sprockets, CAT Duo cone seals
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Rotary Shaft seals KO 4920, Trelleborg Toric shaft seal rings manufacturer
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time: 1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Fiat Allis FX 250 Mirror seals, metal face seals 4989862 for Diesel Engine
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: mechanical face seals for Rotary Shaft, GNL 4975 Metal seals
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Raise Boring Roller Cutter Floating seals, 2228208726 Mechanical face seals for Raise Boring Machines
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.
And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material: Forge / iron metal seal + NBR / silicone / Viton rubber ring
2.size: internal diameter 30 mm - 1000 mm
3.Type: CAT Duo Cone Seals for mining, agriculture 365-4920 brakes and transmission parts
4.package: Inner packing in shrink wrapped plastic bags and boxes, outer packing in cardboard boxes and wooden pallets.
And also can meet your requirements for packaging.
5.sample runtime: Available stock, order Lead time: 1 to 2 weeks
6.Output: 50000pcs per month
7.Shipping port: Shanghai, Ningbo, Xiamen, Shenzhen, according to the request of any port
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: 195-30-00302 Silicone Seal group, Viton mechanical face seals, NB60 Metal seals Rvton
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.
And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
1.material:Forge/cast iron metal seal + NBR/silicone/Viton rubber ring
2.size: inner diameter 30mm - 1000mm
3.Type: Komatsu Excavator PC1000 Seal Groups, 195-27-00102 Floating Seals
4.package:Inner packing in shrink wrapped plastic bags and boxes, outer packing in cartons and wooden pallets.
And can also meet your packing demands.
5.sample lead time:Stock available,order lead time:1- 2 weeks
6.Output:50000pcs per month
7.Shipping port: Shanghai,Ningbo,Xiamen,Shenzhen,any port as per request
