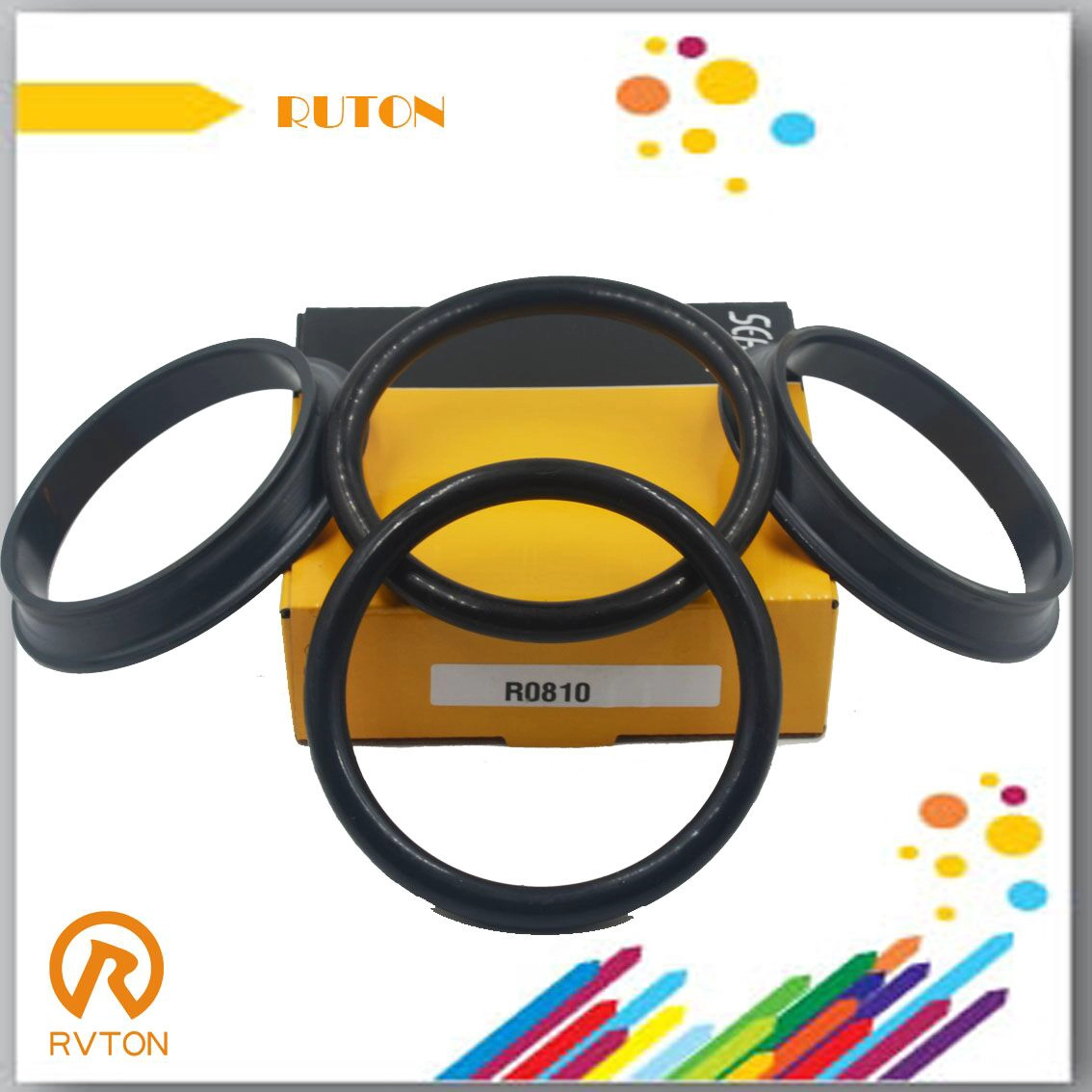

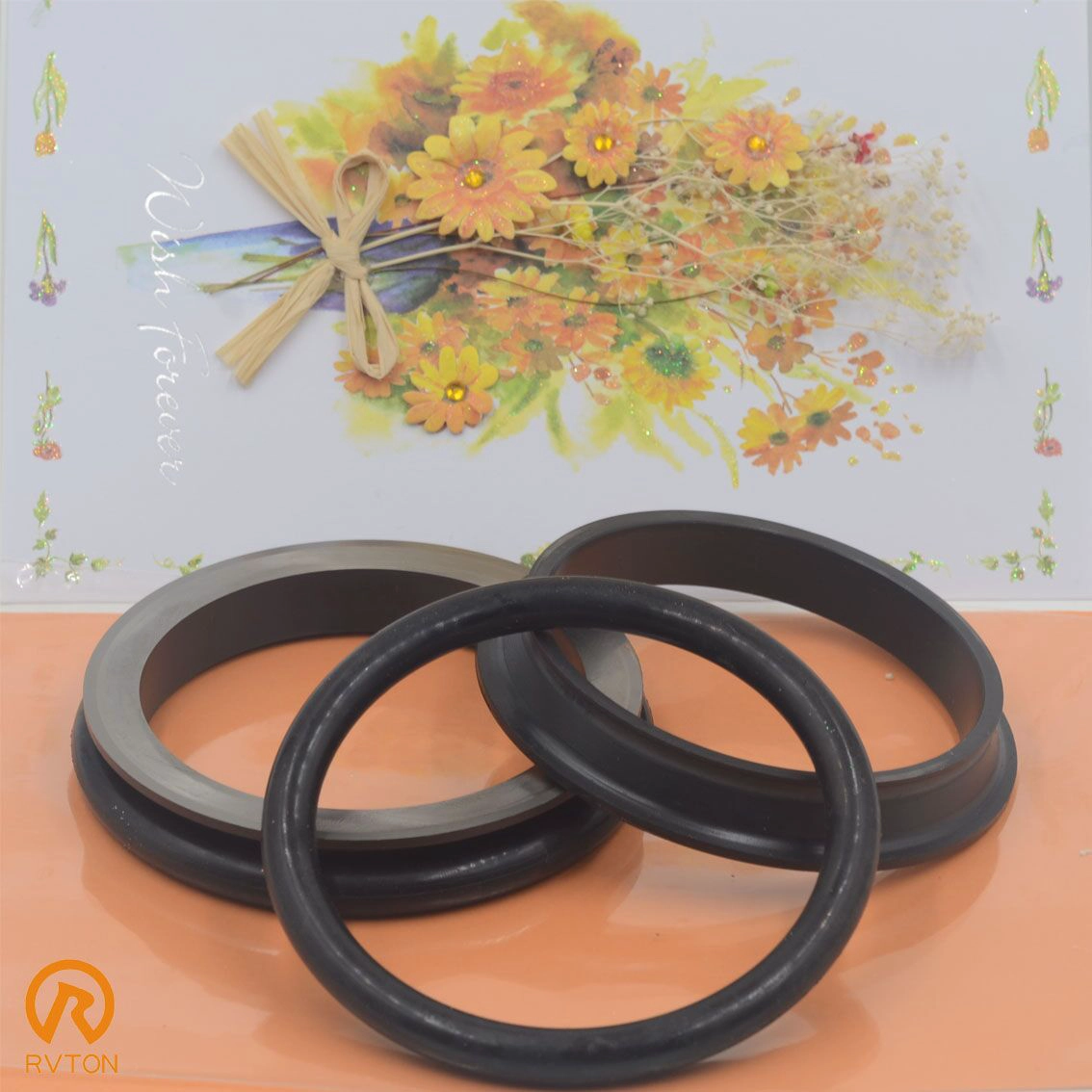

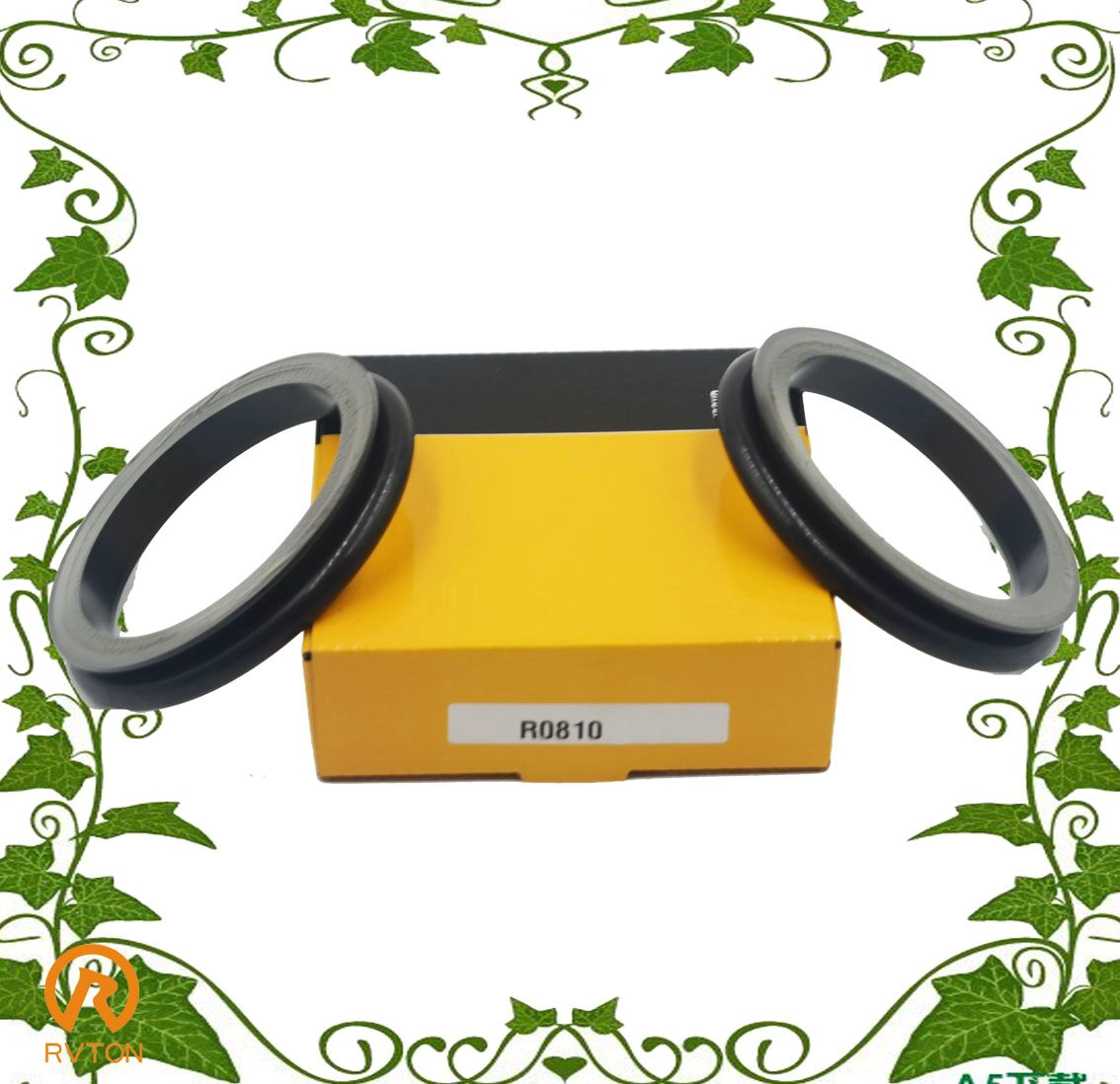

H- 32 FACE seal Dresser, Case/IH Seal NEW AFTERMARKET PARTS

  • 1.Lifetime:5000Hours/8000hours,
  • 2.Hardness:58-62HRC/62-68HRC,
  • 3.Material of Seal:100cr6/Gcr15/E52100/534A99/SUJ2,
  • 4.Inner diameter:38mm-1000mm,
  • 5.Material of O-Ring:NBR/Viton/Silicone/HNBR,
  • 6.Process of Seal:Forging & Casting,
  • 7.O-Ring color:Black/Blue/Red/Custom
  • 8.Rubber Ring Hardness:60-65°.
  • Product Details
H- 32 FACE seal Dresser, Case/IH Seal NEW AFTERMARKET PARTS



Product Description
  • Also called floating oil seal, seal group, Duo cone seal, mechanical face seal, lifetime seal
  • used in construction, farm, coal mining machinery.
  • the outer diameter is from 50mm-1,000mm.
  • The hardness is HRC58-62 , the working face precision within 0.015um.
  • Flatness up to 0.1um-0.2um ,the lifetime is more than 5,000HRS.
  • My factory can produce floating seal according to OEM codes or customize.

OEM codes of seals:


Model OEM Codes

D-50 A-15

140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010

PC-300-3

154-30-00831 , 141-30-00616 , 150-27-00017 , 287-33-00010

E320

 1M8746, 9W7225, 9W7220, 8E5609

EX 60

 4283635, 4176379 , 4177260 , 4082631

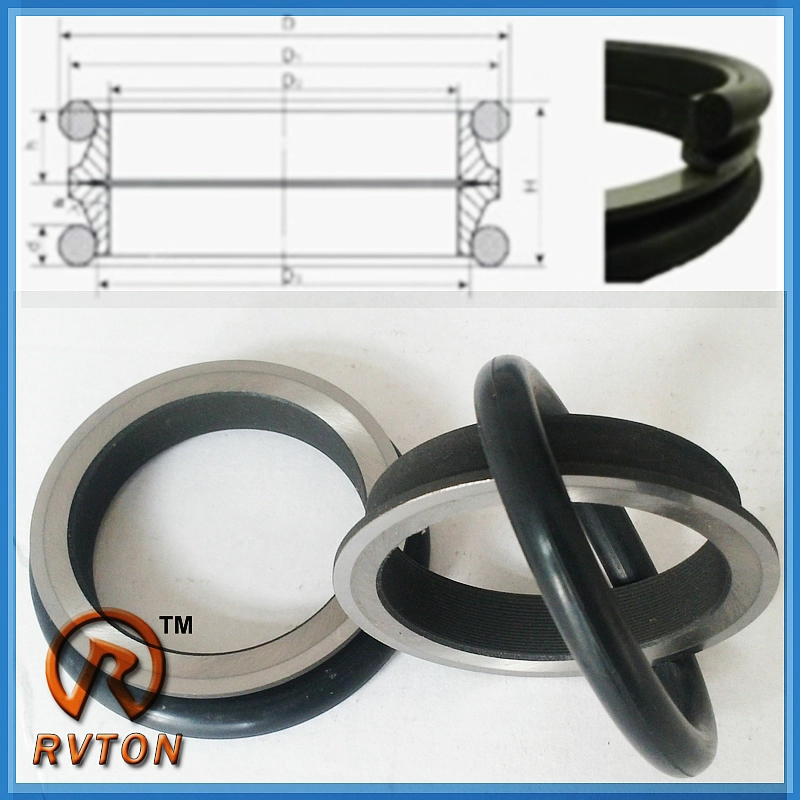

1. Drawing: OD / ID/ H/ h for seal ring  / O-ring

standand type

Types of seals OD (mm) ID (mm) height (mm)

180-27-00021

180

159

16

CR 1096

119

100

16

9G 5315

210

182

19

OK5110

229

200

18.5

5P 5829

260

230

19

L Type

Types of seals OD (mm) ID (mm) height (mm)

U17386

62.1

47.1

10

U16187

72

54

10

U16186

87

66.9

11.6

655973C91

93

73.5

10

xy Type

Types of seals OD (mm) ID (mm) height (mm)

9W 7232

70.5

53.7

31.5

7T0158

82.2

66.5

31

7T0159

93

76

32.5

7T0157

99

82

32.5

iron plate type
Types of seals OD (mm) ID height (mm)

TZ300A-1010

180

164

9.7

TZ310B-1027

185

158.7

12.3

TZ550A-1010

210

186

11.4

TZ850A-1010

230

201

13.3

2. OEM part numbers are available

For Komatsu For Caterpillar For Hitachi For Kobelco For Volvo For GNL For Trelleborg Others
150-27-00021 4233300021 207-30-00150 E330B 5P4858 9W 7225 4056360 4508193 YN53D00008S023 VOE 14528713 AC 2030 CR.3860 TLDFA3200 741009
150-27-00025 5691020160 208-27-00140 E300 5P0992 9W 7223 4060222 4512571 YN15V00037S029 VOE 15175856, ZTAJ-00017 CR 1096 GNL 0415, 76.90H-41 TLDFA3550 960883
150-27-00026 5691020340 208-27-00210 CAT320 track roller 5P0991 9W 7220 4060225 4513173 SK200-6 VOE11102532 CR 1096 GNL 0445 TLDOA1000-2CP00 988430
150-27-00028 100-27-00030 20Y-27-00110 CAT 776,797,793B/C 5P 9121 9W 7212 4068433 4634693 R45P0018D8 VOE14522998 CR 1195 GNL 3345 TLDOA1539 4993119
150-27-00029 100-27-11330 20Y-30-00040 9W9230 5P 9120 9W 7206 4082631 4642180 R45P0018D6 volvo VOE11102685 CR 1291 GNL 3518 TLDOA1823-2CP000 7610241
150-27-00330 101-27-00010 20Y-30-00041 9W-8878 5P 7147 9W 7205 4082698 3654920 R45P0018D4 VOLVO210 CR 1857 GNL 3621, 5M7294 TLDOA2316-2CP00 9314131
150-27-00410 10Y-30-00100 20Y-30-00050 9W7235 5P 7146 9W 7203 4092483 4047279 R45P0018D4 VOLVO240 CR 1868 GNL 3800 TLDOA2316-2CP00 014-5041200
150-27-24130 110-30-00085 20Y-30-00090 9W7201, 9G5323 5P 7143 9W 7201 4110359 4104605 R45P0018D29 　 CR 3069 GNL 3820, 76.90H-74 TLDOA3185-2CP00 151215514
150-27-24250 110-30-14262 20Y-30-00100 9W6699 5P 5829 9W 6822 4110360 4350347 R45P0018D28 　 CR 3105 GNL 3840 TLDOA4292-2CP00 24100U1743S24
150-27-24260 12Y-30-00100 20Y-30-00101 9W6653 5P 2498 9W 6717 4110362 4514259, R45P0018D27 　 CR 3108 GNL 3875 TLDOA5054-2CP00 2445Z1109
150-30-00035 130-27-00010 20Y-30-00410 9W 7211 5P 0991 9W 6691 4110363 ES-102 R45P0018D25 　 CR 3276 GNL 4830 TLDOA5300-2CP00  2445Z1110
150-30-00702 130-27-00010, 20Y-30-13210 9W 7209 5P 0375 9W 6690 4110364 ES-110 R45P0018D22 　 CR 3301 GNL 4955 TLDOB2650-2CP00 4989862 = 79007454
150-30-12220 130-27-00012 20Y-30-15210 9S-4300 5P 0374 9W 6689 4110366 ES-120 R45P0018D21 　 CR 3336 GNL 4975 TLDOB3000-2CP000 586607 = 79001861
150-30-22211 130-27-00020 21T-30-00110 9S4294 1P7249 5P 0204 9W 6688 4110367 ES-137 R45P0018D20 　 CR 3621 GNL 5110, 76.90H-25 TLDOC2235-2CP00 58845-01500
154-30-00035 130-27-00021 21T-30-00140 9S 4295 5M 8647 9W 6686 4110368 ES-209 R45P0018D2 　 CR 3820 GNL 5525 TLDOC3665-2CP000 592553 = 79000658
154-30-00832 130-27-00140 287-33-00010 9S 3521 5M 7294 9W 6685 4110369 ES-250 R45P0018D18 　 CR 3830 GNL 5595 　 619-95032001
154-30-00833 130-27-B0100 421-33-00020 9G 5347 5M 1177 9W 6684 4111361 ES-56 R45P0018D16 　 CR 3860 GNL 5650 　 6560-81-8101
170-27-00023 130-27-B0200 421-33-00021 9G 5345 5M 1176 9W 6680 4114753 ES-64 R45P0018D15 　 CR 3865 GNL 5720 　 76.90 H-16A4, H-16,
170-27-00024 130-30-B0400 421-33-00050 9G 5343 5K-6191 9W 6674 4128201 ES-95 R45P0018D14 　 CR 3872 GNL 5731 　 76.90 H-30
170-27-00025 140-30-00040 423-33-00020 9G 5341 5K5288, 5K5285, 9W6645 9W 6673 4138544 EX200 R45P0018D13 　 CR 4050 GNL 5820 　 76.90H-28
170-27-00110 140-30-00041 425-33-00110 9G 5339 5K1075 Oring 9W 6672 4153468 Hitachi 200-3 Final Drive R45P0018D12 　 CR 4143 GNL 5821 　 76.90H-28A6
170-27-00111 140-30-00141 425-33-00111 9G 5323 5K 6191 9W 6671 4153731 TD00348/17 R45P00018D9 　 CR 4359 GNL 5830, 76.90H-27 　 76.90H-30A1
170-27-00113 141-27-00010 428-33-00022 9G 5321 5K 5288 9W 6670 4153732 TD-00349/17 LQ15V00020S067 　 CR 4792 GNL 5845 　 76.90H-60A2
170-27-00120 141-27-00015 562-33-00013 9G 5319 4M0660 9W 6669 4163731 TD-0035/4 45P0018D18 　 CR.3830 GNL 5865 　 76.90H-75A2
170-27-12340 141-30-00610 568-33-00016 9G 5316 4M 0736 9W 6667 4177260 TD-00441/9 　 　 CR3770 GNL5420 　 76.97 H-24
170-27-12510 141-30-00615 586-33-00010 9G 5315 4K0173 Oring 9W 6666 4179741 TD00611/02 　 　 CR4050 GNL5730 　 berco IN3401
170-27-12511 141-30-00616 760S092FS 9G 5314 4K 6049 9W 6651 4245703 TD0352/04 　 　 CW5920 GZ 0445 　 BLA 2371
170-27-12513 141-30-26090 760S099FS 9G 5313 4K 0174 9W 6649 4283635 TH100463 　 　 FL5420 GZ 5823 　 CC431
170-27-12520 141-30-36280 760S247FS 6D 1190 3T6602 9W 6648 4285046 UH07 UH081 　 　 GZ5848 GZ 5830 　 Doosan 258-5
170-30-00110 144-30-B0100 ES 100-154-203 5P-9121 3T 9117 9W 6647 4317586 ZAX200 　 　 GZ5860 GZ0410 　 Doosan 280/350
170-30-00210 144-30-B0100 ES 100-182-201 5P-7146 3T 6541 9W 6645 4344155 ZX50 travel motor 　 　 GZ5868 GZ0420 　 H-016
175-27-00120 14X-27-00101 ES 100-225-201 175-6294 3P1850, 3P8572, 3T8500, 9W2623 9W 3732 4507221 　 　 　 GZ5895 GZ5820 　 KM1819
Packaging & Shipping

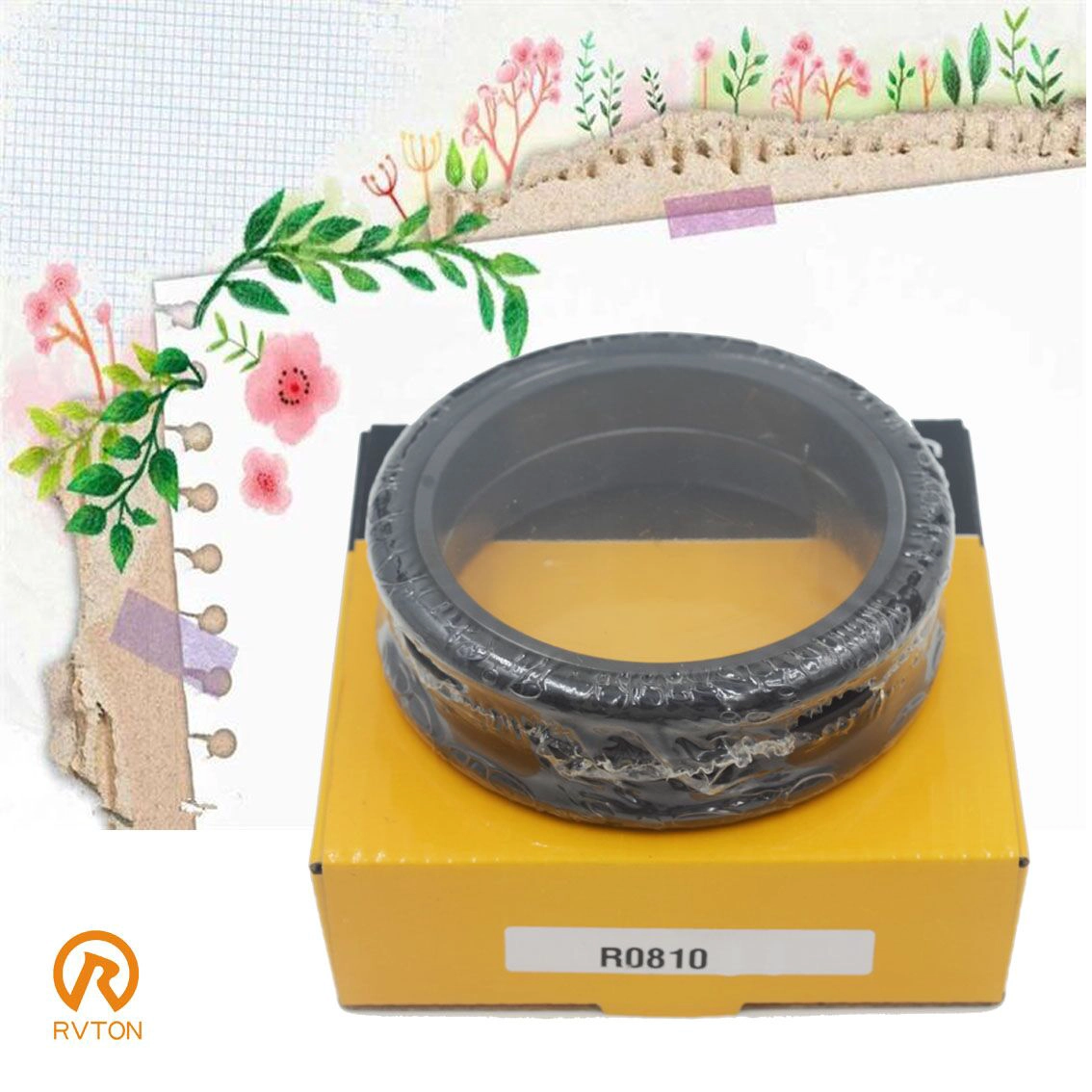

Packing info: neutral packing, yellow box, white box, and welcome your logo in packing


5. Installation Methods:

  1.        Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

    2.     Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting positions.

6. Application: Engineering,Farm,construction, coal mining machinery...

Our Services

Customers Design and Small Quantity Trial Orders are welcomed,

we assure 18 months' warranty after each shipment and

we have a strong technical department to support aftersales.



initpintu_

FAQ

1. As an inland company, how to arrange shipment ?

This could be our advantage, as we are located in middle of China, it takes us same times to send goods either to Shanghai,Ningbo, Shenzhen, or xiamen port. We accept most of port for sea shipment.



2. Usually how long it take to finish an order ?

4 - 6 weeks for a common order around 1000 sets, and we keep stocks for sample order or trial order, which can supply immediate delivery.



More questions ?? Macy is online answering any questions.
