1. Floating seal also called toric seals, seal group, Duo cone seal, mechanical face seal, lifetime seal
2. Diemension of metal seal: 122*102*16.5
3. Working lifetime: 5000 hours / 8000hours
4. Warranty: 18 months each shipment, take care of afterservices
|
Product Name
|
Hitachi Floating seals 4068433 4153731 TD00611/02 4163731 ES-102, SEAL GROUP YH501 YH35 UH073 UH820LC UH081 UH082LC EX1000 UH30
|
|
Material
|
Steel Forge / Cast iron + Rubber ring NBR/Sic/FKM
|
|
OEM part numbers
|
Hitachi Floating seals 4068433 4153731 TD00611/02 4163731 ES-102
|
|
Machine model
|
Hitachi YH501 YH35 UH073 UH820LC UH081 UH082LC EX1000 UH30
|
|
Application
|
Undercarriage, final drive, rollers
|
|
Working hardness
|
HRC58-62 //62-68HRC
|
|
OEM service
|
OEM design, OEM packing according to customer drawing, sample , special request
|
|
Used
|
construction machinery, farm machinery, coal mining machinery.
|

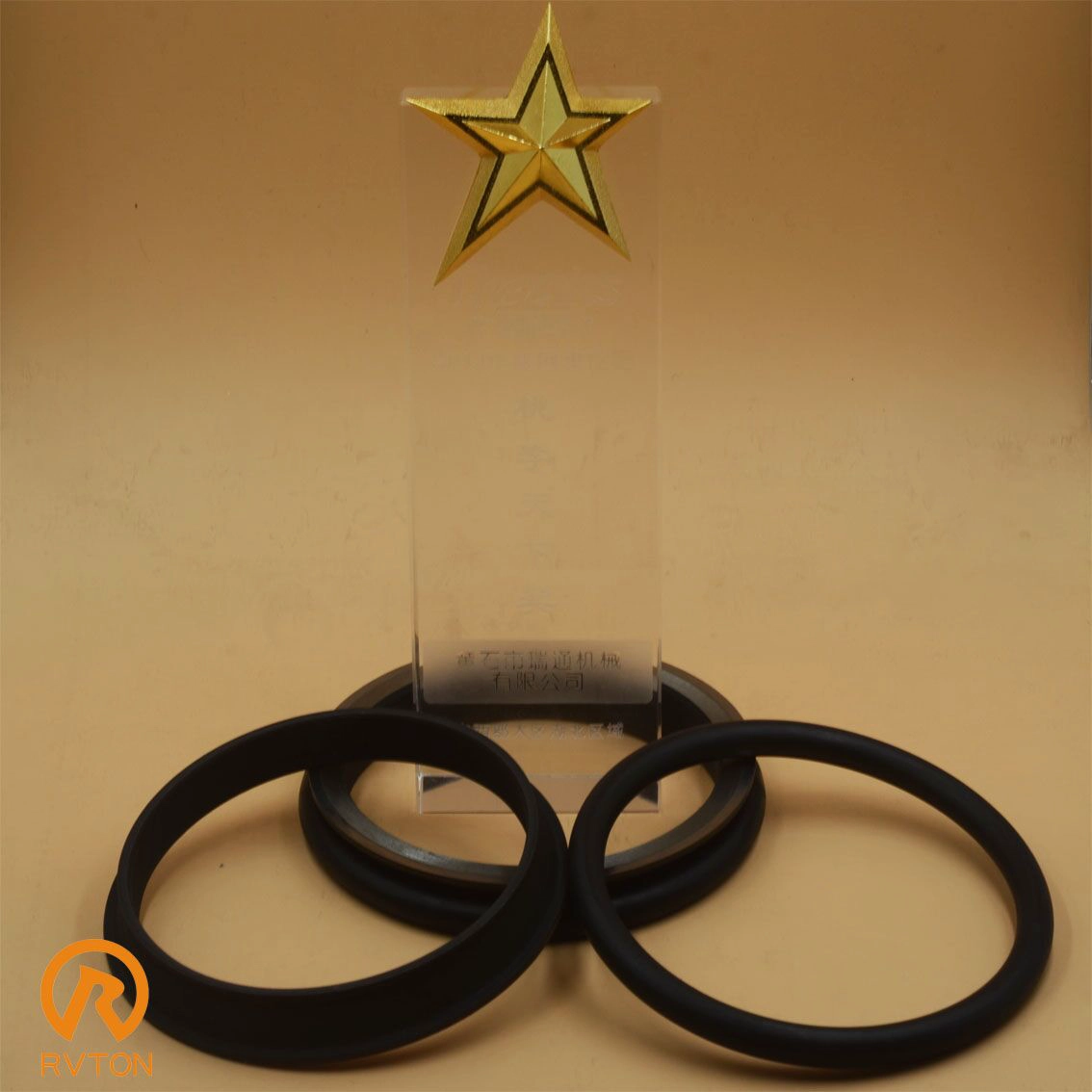

Products Show
The seal group are consist of metal rings and rubber washers.
The metal rings:
| Surface finish / Roughness |
≤ Ra0.2μm |
| Face finish |
≤ Ra0.015μm |
| Pressure |
≤ 0.3MPa |
| Forged line speed |
2m / s |
| Casting line speed |
3m / s |
|
|
-100 ~ 200 °C |
The rubber washers:
| Shore hardness |
60 ° ~ 65 ° |
| Minimum tensile strength |
11MPa |
| Minimum elongation at break |
300% |
| Flexible change |
± 5 ° |
| permanent deformation |
≤ 12% |
The advantages of our product:
1.Coexistence of high quality and competitive prices
2.Long service life
3.Easy to install
4.High yield
5.Good performance
Method of installation:
1.Using
specialized tools installation: The pressure will apply to the O-ring
directly. As shown, the special tool is mounted between the metal
floating ring and the rubber ring, toward the seat hole, the rubber ring
is evenly pressed into the hole.
2.Other
installation methods: One auxiliary O-ring is fixed between the conical
ring surface of the floating oil seal and sealing O-ring (as shown).
The ring of the floating oil seal is applied uniformly by pressure and
the auxiliary O-ring braces the sealing O-ring to ensure the other
correct mounting positions.
There
are too many specifications that I just list a small part. Please
contact me to ask if you havn't found what you want. Thank you!
Standard Type
|
4176379
|
38mm
|
51mm
|
20.4mm
|
|
1791292
|
63.5mm
|
82.5mm
|
31.8mm
|
|
170-27-00010
|
130mm
|
151mm
|
32mm
|
|
9W 6668
|
163.3mm
|
191.2mm
|
38mm
|
|
9W 6672
|
182.3mm
|
210.3mm
|
38mm
|
|
9W 3732
|
264.9mm
|
292.8mm
|
38mm
|
|
4066695
|
298mm
|
328mm
|
42mm
|
L Type
|
Product number
|
OD
|
Diameter
|
Height
|
|
U17386
|
62.1
|
47.1
|
10
|
|
U16187
|
72
|
54
|
10
|
|
U16186
|
87
|
66.9
|
11.6
|
|
655973C91
|
93
|
73.5
|
10
|
XY Type
|
Product Number
|
OD
|
Diameter
|
Height
|
|
7T4080
|
70.5
|
53.7
|
31.5
|
|
7T0158
|
82.2
|
66.5
|
31
|
|
7T0159
|
93
|
76
|
32.5
|
|
7T0157
|
99
|
82
|
32.5
|
Iron Plate Type
|
Product Number
|
OD
|
Diameter
|
Height
|
|
TZ300A-1010
|
180
|
164
|
9.7
|
|
TZ310B-1027
|
185
|
158.7
|
12.3
|
|
TZ550A-1010
|
210
|
186
|
11.4
|
|
TZ850A-1010
|
230
|
201
|
13.3
|
|
TZ150A-1010
|
260
|
216
|
13.3
|
|
TZ150F-1027
|
284
|
247
|
13.3
|
|
TZ200B-1010
|
290
|
248
|
13.3
|

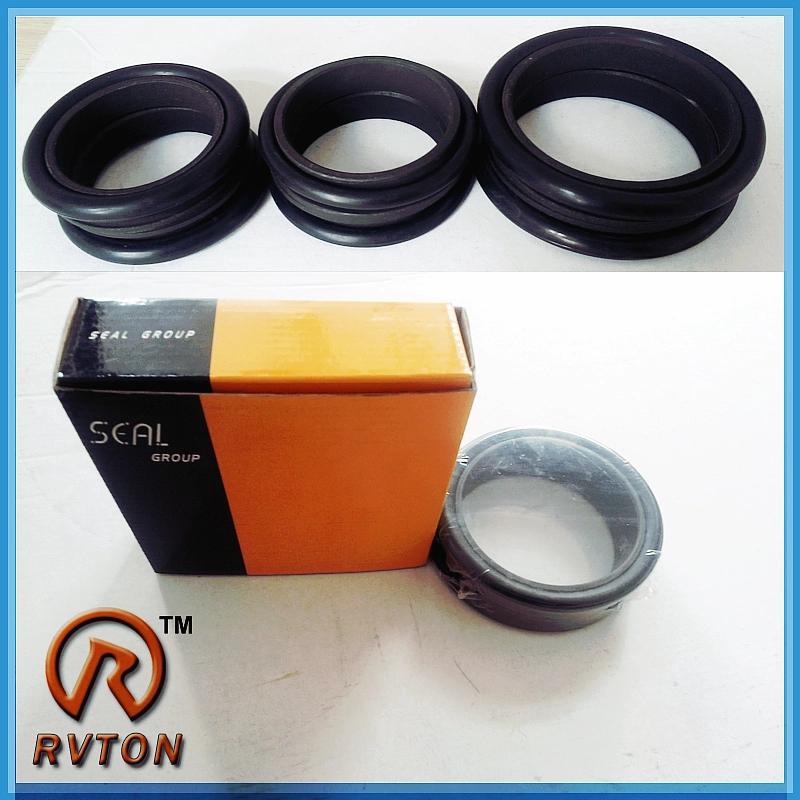

About packing:
There
are three styles of our box. And we also have cartons and trays. We put
seal group in box, then put several boxs in cartons.
About our factory:
Our company's products are widely used on crawler dozers, excavators, heavy vehicles and machinery. They
sold throughout the country and Southeast Asia, Europe and America, and
the customers always feel satisfied. Using RVTONG floating seal ring
will make you even more powerful and successful.
